FUNHOUSE (Williams) Divertor Assy
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

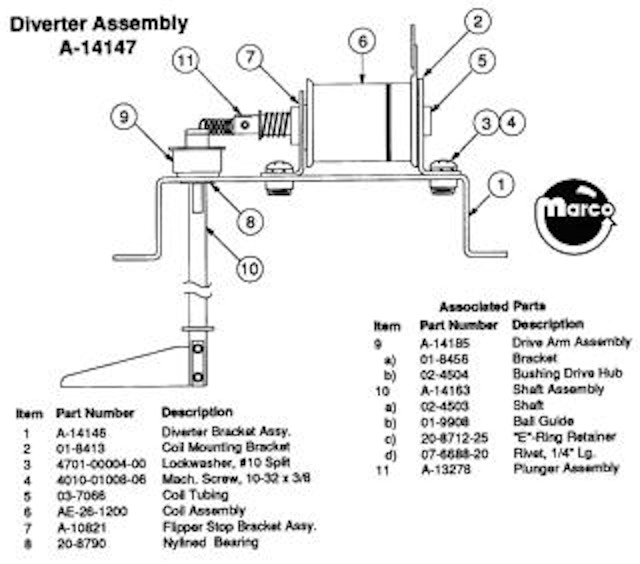

Williams FUNHOUSE Diverter assembly
Ship un-assembled
Reference:
A-14147
Diverter bracket assembly
Bracket - coil mounting
#10 steel split lock washer. Zinc plated.
Machine Screw 10-32 x 3/8 inch p-ph nylock.
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Flipper coil stop for 1987 Williams F-14 TOMCAT, SPACE STATION, FIRE!, BIG...
Standard snap-in Nyliner® bearing bushing with 1/4 inch Inner Diameter
Drive arm assembly used in solid state Williams/Bally games.
Common solenoid coil used on many manufacturers pinball machines.
Plunger Reference: 02-4241
Roll pin 1/8 x 1/2 inch 20A-8716-6 251-5041-00
Spring - extension diverter plunger
E-clip or e-ring commonly used on many mechanisms. 7/16 in. measured at the o...
Shaft diverter
Brass rivet - 1/8 shaft x 1/4 long x 7/32 inch head
Set Screw 10-32 x 1/4 hex socket cup. Reference: 4010-01082-04...
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00
