Sega APOLLO 13 Moon Unit rotational orbit motor.
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Sega APOLLO 13 pinball machine Moon Unit rotational orbit motor,cables with connectors, bracket & cam assembly.
Ships un-assembled
Reference:
500-6021-00-44 Moon Unit assembly515-6408-00 Moon sub assembly515-6407-00 Motor, bracket & cam sub assembly515-6487-00 Motor and gearbox assembly
Drawing items:
1 Moon sub assembly 515-6408-00
1A Moon half left 545-5642-00
1B Moon half right 545-5641-00
1C Magnet coil 090-5042-01
1D Magnet core 530-5372-00
1E Shaft and gate 515-6406-00
1F Retaining ring 270-5001-00
1G 6-32 stop nut 240-5005-00
1H Fastening plate 515-6404-00
1J Drive belt 545-5643-00
1K #6 washer 245-5001-00
2 Support bracket 535-7538-003 Roller assembly 515-6451-004 Motor bracket and cam 515-6407-00
Select manufacturer to view game compatibility

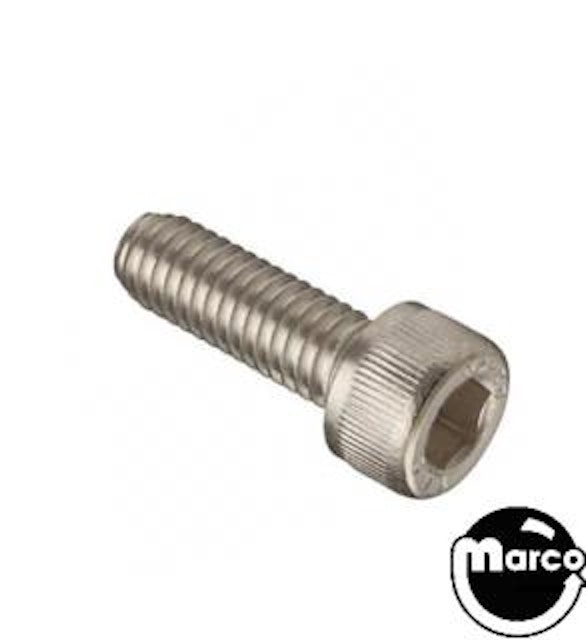

Cap screw 6-32 x 1/2 inch socket head zinc
Sega APOLLO 13 Moon Unit rotational orbit motor and cable assembly.

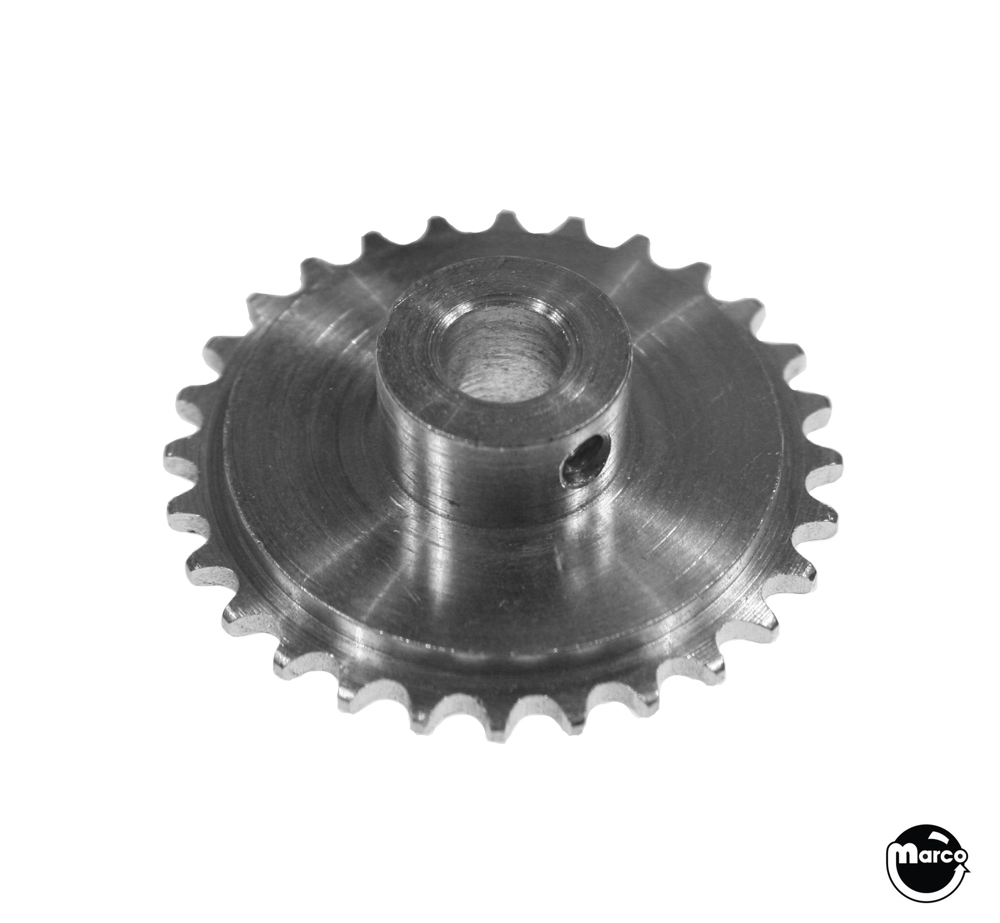

APOLLO 13 (Sega) Gear - lower
