BIG BUCK HUNTER (Stern) Upper carriage assembly
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

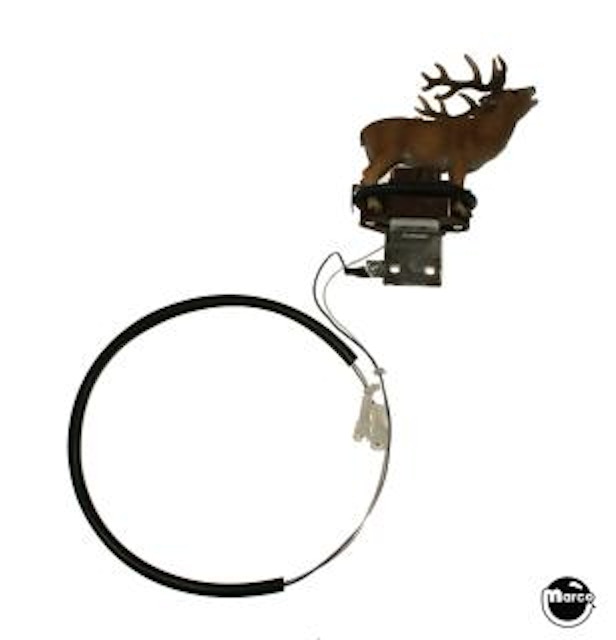

Stern BIG BUCK HUNTER pinball machine upper deer ball catcher carriage assembly.
Ships un-assembled
Reference:
511-5226-00
515-7223-00 platform
535-0324-00 pivot plate
530-6555-00 steel spacer
511-5227-00 actuator assembly
266-5094-03 compression spring - deer
535-0325-00 actuator cap
240-5303-00 4-40 nylon lock nut (x 6)
545-6802-00 glide pad (x 2)
237-6197-00 screw, 4-40 x 3/16 pfh u/c 18-8 ss (x 4)
237-5516-00 screw, 6-32 x 1 5/8 pph
237-5852-00 4-40 x 1-1/8 pph ms (x 2)

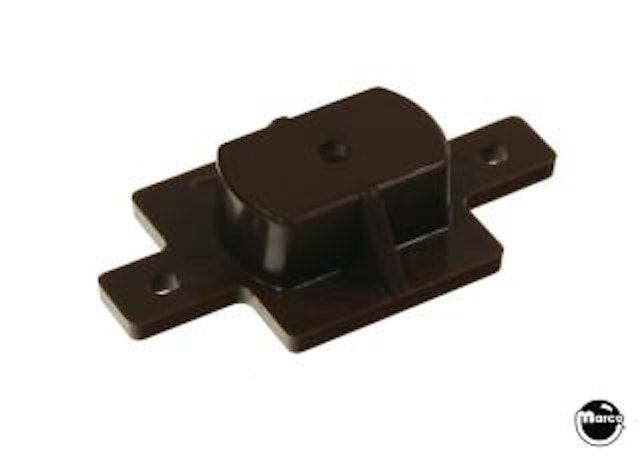

545-6803-00 upper actuator housing
242-5002-00 #4 flat washer - 5/16 OD (x 2)
545-5348-07 black rubber - 1-1/2 ID
880-5110-01-ASY deer - fastened
232-5209-00 screw, 6-32 x 3/16 pph sems Sub-assembly of:
Deer track prime assembly 511-0048-00
Select manufacturer to view game compatibility
Compression spring used in Stern pinball machines.
BIG BUCK HUNTER (Stern) Actuator post
Stern BIG BUCK HUNTER Actuator assembly
BIG BUCK HUNTER (Stern) Cow catcher bracket
BIG BUCK HUNTER (Stern) Pivot plate
BIG BUCK HUNTER (Stern) Platform
Hex stop nut 4-40 thread. Replaced by 4404-01119-00
Machine screw with 4-40 thread and 3/16" long with phillips flat head in s...
Machine screw with 6-32 thread and 3/16" long with phillips pan head and attached lockwasher.
BUCK SCHLEICK for Stern BIG BUCK HUNTER. Reference: 880-5110-01-ASY
Washer #4 flat 5/16 inch OD

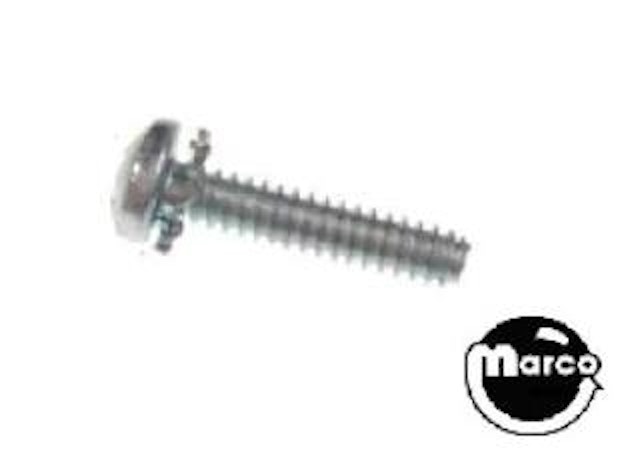

Machine Screw 6-32 x 5/8 inch p-ph sems
Stern BIG BUCK HUNTER Cable - deer switch
BIG BUCK HUNTER (Stern) Actuator housing
BIG BUCK HUNTER (Stern) Wear pad
BIG BUCK HUNTER (Stern) Upper actuator housing
BIG BUCK HUNTER (Stern) Spacer
BIG BUCK HUNTER (Stern) Actuator plate
Machine screw 4-40 x 1-5/8 inch pph
Machine screw with 6-32 thread and 1-5/8" long with phillips pan head...
Reference Numbers: Gottlieb A-10220Y Williams 23-6694-8 Sega...
