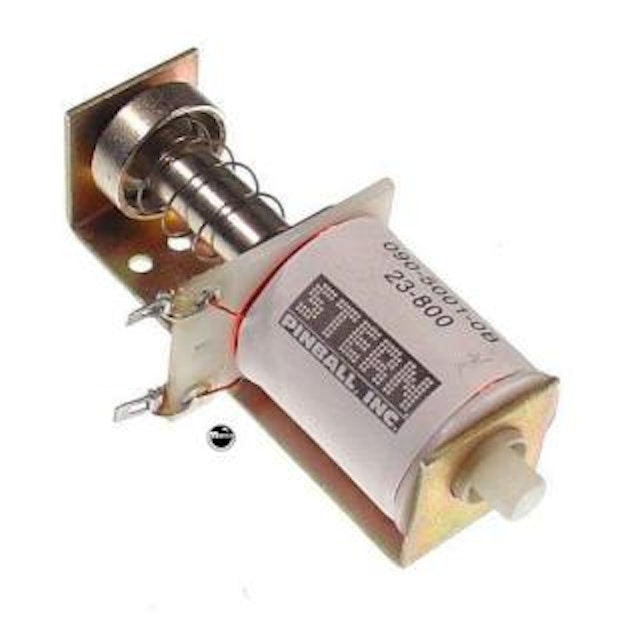

Kick Big assembly

In Stock#500-5862-00

Kick Big assembly includes 090-5001-OB coil, plunger and bracket

$65.99

Quantity:

CALIFORNIA WARNING

This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

Kick Big assembly

Also listed as Laser Kick and Lock Kicker assembly.

Includes 090-5001-OB coil, plunger and bracket.

Ships un-assembled.

Reference:

500-5862-00 Kick Big assembly

Product Compatibility

Kick Big assembly

Product Details

Related Items

Kick Big frame Stern

Bracket - coil front replaces 535-5203-01 535-5203-02

Spring washer .531 x .75 x 1 inch

Plunger assembly 3.5 inch kickback/knocker DE/Stern 515-5000-00 515-5000-01

Machine screw 8-32 x 1/4 inch p-ph-sems 232-5300-00

Spring - compression 5/8" x 1/2"

Grommet - button bumper

Coil - solenoid no diode 090-5001-ND

Diode - 400 volts 1 amp 5070-09054-00 XO-254 E-587-15

Coil sleeve - 1-15/16 inch with 1/4 inch flange

Sheet metal screw #8 x 1/2 inch sl-hwh-ab zinc
