Flipper assembly Data East right
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

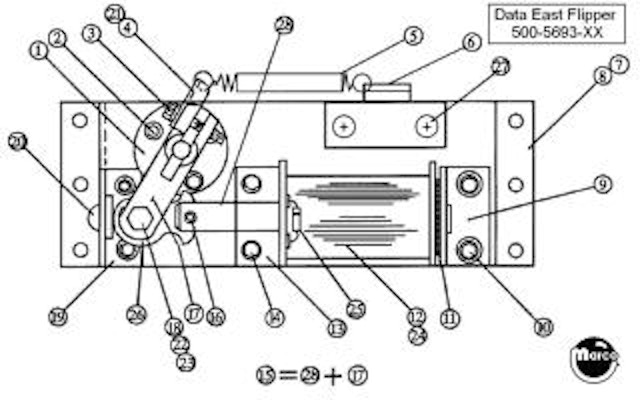

Data East / Sega right side flipper assembly.
Ships un-assembled.
Reference:
500-5693-01
500-5693-01-33
Bracket, spring right flipper assembly for Data East Pinball Machines. Replaces the 535-6421-00
Coil bracket notched
Data East / Sega / Stern flipper solenoid coil with diode.
Hex spacer Post 3/8 x 1/4 inches #6-32 tap both ends.
Elastic Stop Nut used on rod and ring (A-4754) assemblies.
Machine screw with 6-32 thread and 1 inch long with phillips pan head.
Data East/ Sega/Stern pinball machine End-Of-Stroke (EOS) flipper switch
Stop, CRY Nylon Flipper

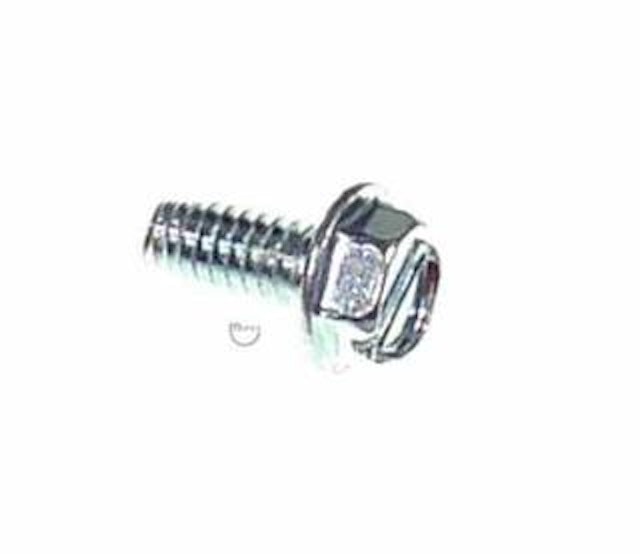

Screw 8-32 x 3/8" TF serrated washer head
Plunger & link assembly for later Bally and Williams machines.
Machine screw with 6-32 thread and 5/8 inch long with phillips pan head.
Cap - red plastic actuator Data East
Bracket, spring right flipper assembly for Data East Pinball Machines. Replaces the 535-6421-00
Bushing/spacer is used in flipper assemblies on games built prior to...
Flipper plunger link used in Data East games.
Bracket - flipper plunger stop
Shoulder bolt 8-32 x 7/16 inch shaft
Nut with 10-32 thread and elastic stop top (esn) 238-1306-00
Crank arm block
Split roll pin 5/32 x 7/16 inch. Reference: 251-5000-00
Spring washer 1/2 inch inner diameter and 3/4 inch outer diameter commonly used on...
Flipper return extension spring used on Data East, Sega, and New Stern
6-32 X 3/8 slot hex washer head machine screw. Replaces the 4006-01059-06
Machine Screw 1/4-20 x 3/8 inch socket head R/A 231-2507-06
Data East / Sega coil stop bracket
Scew. 232-2206-12
Flipper bushing DE/Sega/Stern
Metal flipper switch spring bracket for many Data East pinball machines
Flipper base plate Data East/Sega/Stern right
Shoulder bolt 10-32 x 7/16 inch shaft
