Lock ball assembly Data East
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

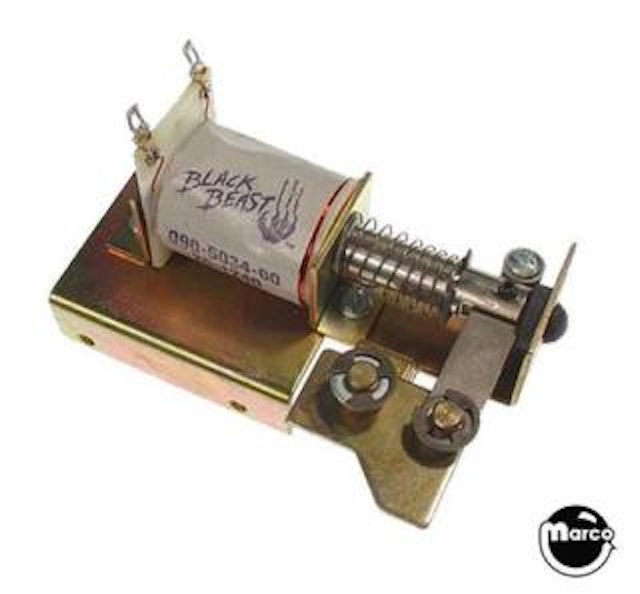

Data East ball lock assembly.
Ships un-assembled
Reference:
500-5684-01
Select manufacturer to view game compatibility
Ball lock assembly link for Sega/Stern pinball machines.
Coil - solenoid no diode Stern 25-1240

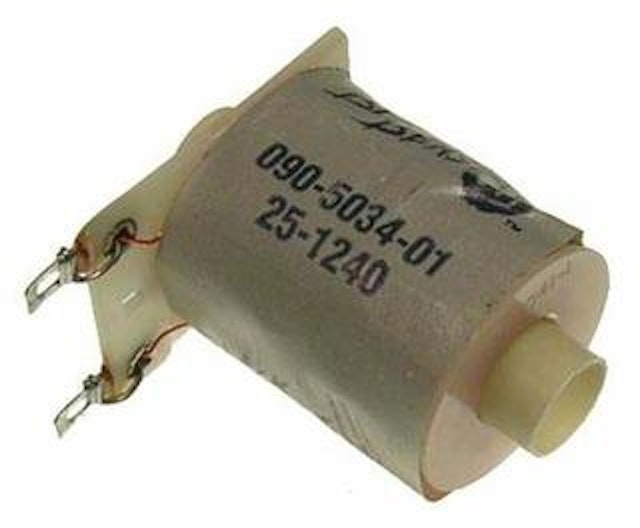

Coil - solenoid and diode DE / Sega / Stern
Cam - ball lock assembly
1/4 inch core height coil stop with 3/8 inch on center mounting holes.
Coil plunger is 7/16" diameter and 2-1/4" long with slotted end.
Rubber grommet used on many Vertical Up Kicker (VUK) and Knocker assemblies.

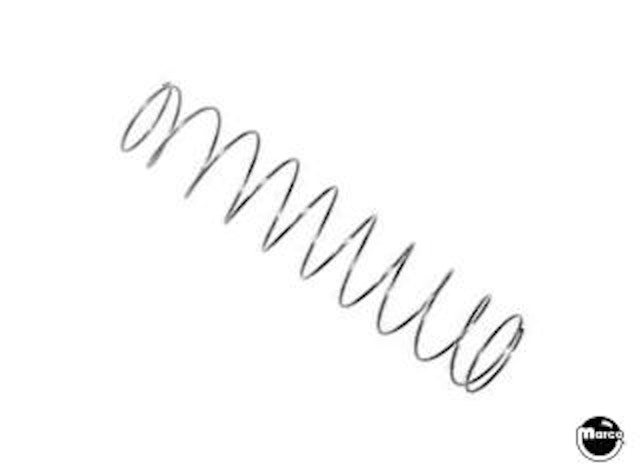

Compression spring used in many different assemblies. Replaces 266-500...
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00

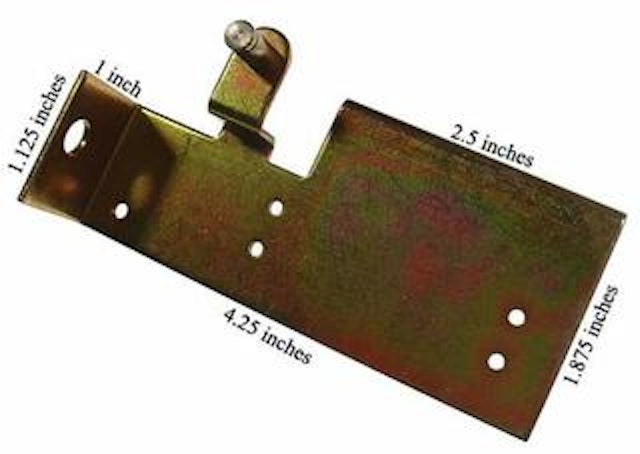

Lock ball bracket assembly used in Sega and Data East pinball machines
Machine Screw 8-32 x 1 inch long phillips pan head.
E-clip or e-ring commonly used on many mechanisms. 7/16 in. measured at the o...
Machine Screw 6-32 x 5/16" p-ph-tcs

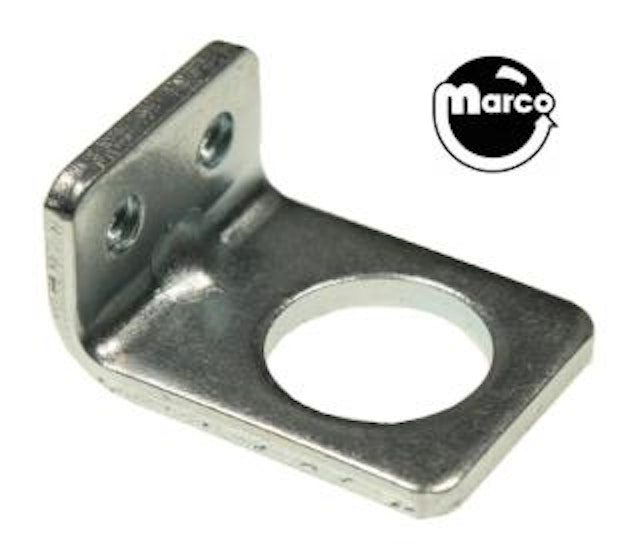

Coil support bracket. Replaces 535-5203-01 and 535-5203-02
