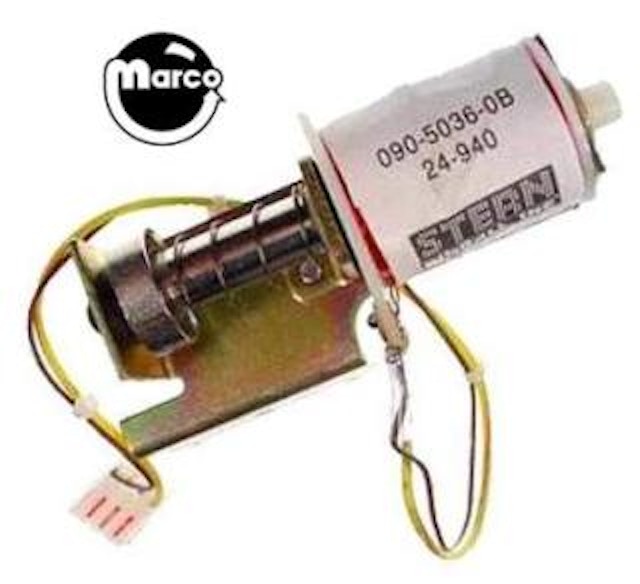

Ball launch assembly kit includes coil
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Stern / Sega / Data East ball launch assembly kit.
Cable not included. Ships un-assembled
Includes:
090-5036-01 coil
535-6385-00 bracket
535-5203-03 retainer
266-5020-00 spring
515-5000-02 plunger
Replaces 500-5477-00 ball launch assembly
Reference:
500-5477-01
500-5477-00
Select manufacturer to view game compatibility
