Machine screw with 5-40 thread and 1/2" long with phillips pan head...
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

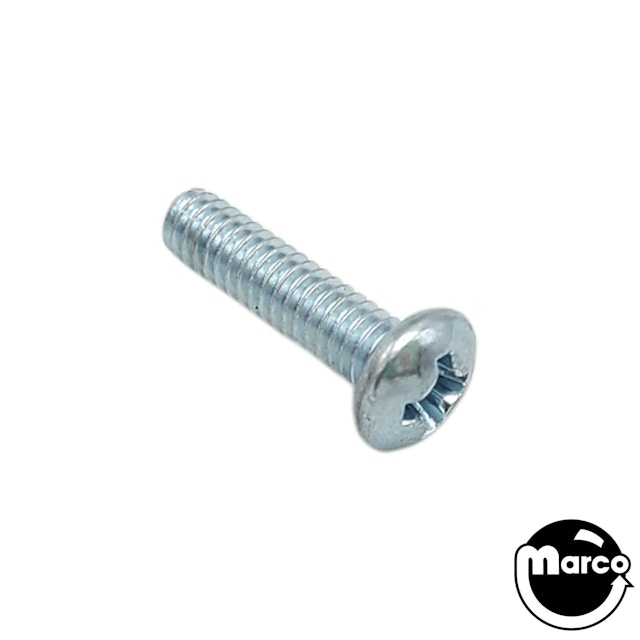

5-40 x 1/2" machine screw with phillips pan head.
Good replacement for Bally EOS switch mounting screw. Original length was 7/16".
Reference:
4005-01005-08
Bally MPSR-540--1807
Fastener part numbering system explained:
The last 2 digits (XX) of the 4 digit fastener part number
prefix
(40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part No.4006-01030-12 indicates a No.6 stud diameter (.138") fastener.
The
middle
5 digits describe the fastener head style or other features.
The 2 digit part number
suffix
for bolts and screws (-12, -04, -16, etc) indicates the number of 1/16" length increments of the fastener. For example, part No.4004-01003-04 indicates a screw that is 4/16" long or 1/4" long.
Basic diameters and threads of Standard
SAE
(Society of American Engineers) numeric system small machine screws are shown below.
The diameters of machine screws are indicated with the number of threads per inch. Here is a list of common sizes in inches:
2-56: 0.0860" or 43/500" diameter; 56 threads per inch
4-40: 0.1120" or 14/125" diameter; 40 threads per inch
5-40: 0.1250" or 1/8" diameter; 40 threads per inch
6-32: 0.1380" or 69/500" diameter; 32 threads per inch
8-32: 0.1640" or 41/250" diameter; 32 threads per inch
10-32: 0.1900" or 19/100" diameter; 32 threads per inch
10-24: 0.1900" or 19/100" diameter; 24 threads per inch
12-24: 0.2160" or 27/125" diameter; 24 threads per inch
Select manufacturer to view game compatibility

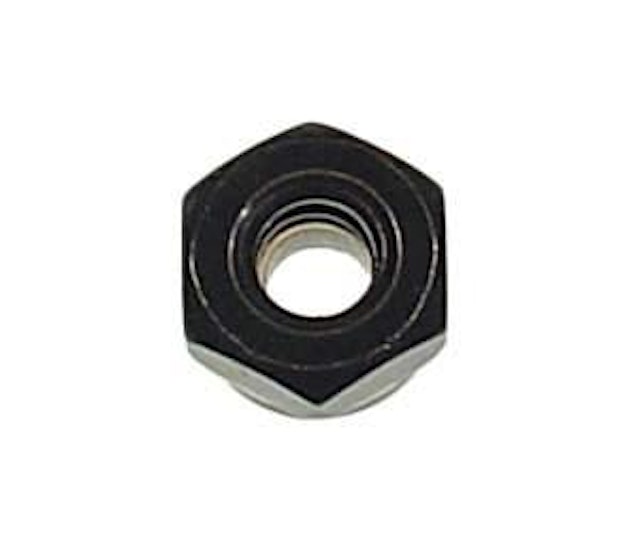

Nut 5-40 esn
