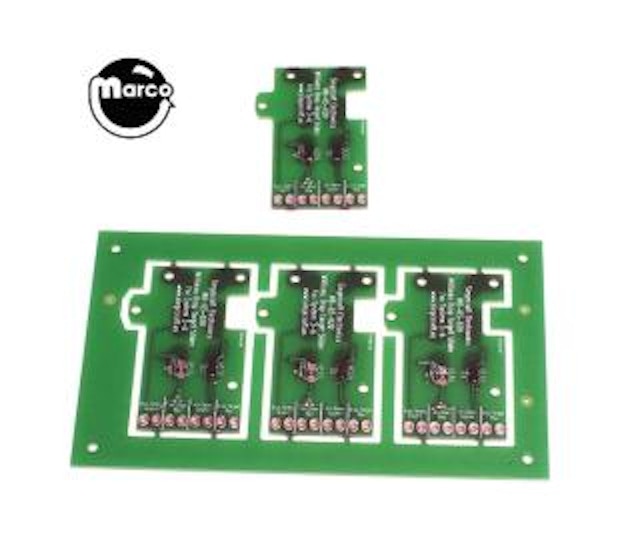

Drop target contact circuit board kit Williams (4)
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
New replacement drop target contact circuit board kit for early Williams System 3 through System 6 solid state pinball machine drop target assemblies.
This 4 board kit is designed for:
Williams CONTACT
Use with horseshoe shaped leaf switch copper contacts (sold separately)
This new design includes:
Board mounted switch diodes to eliminate externally mounted parts and some of the associated wiring
On-board jumpering and diode for the 'all-down' circuit, to further eliminate external wires
Extra wiring holes eliminates need to double up wires in solder connections
Wiring holes spaced for utilizing an optional .156" connector header
Board labeled to identify wires
1B-2001-124
1B-2001-124-4
A-7969
A-7969-A
