DRACULA (Williams) WPC Schematic Manual

Name: DRACULA (Williams) WPC Schematic Manual
SKU: 16-50001-102
Price: 29.99 USD
Availability: OutOfStock

#16-50001-102For Reference

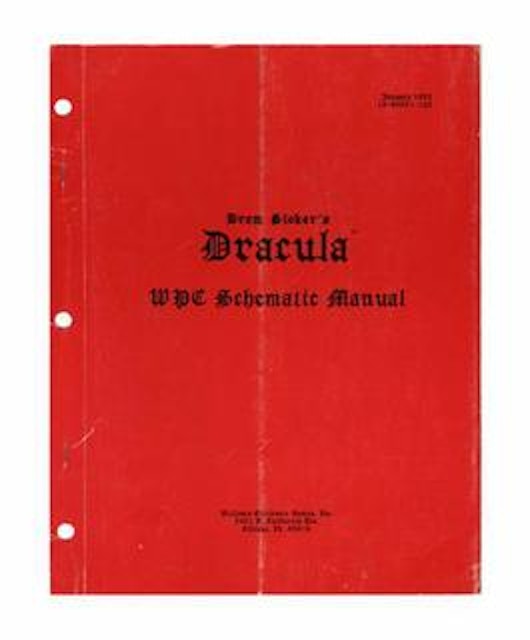

Williams BRAM STOKER'S DRACULA WPC Schematic manual. Fair condition. 13...

This product is currently discontinued.

CALIFORNIA WARNING

This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

Williams BRAM STOKER'S DRACULA WPC Schematic manual. Fair condition.

13 pages
Electrical schematic manual.
Fold out ledger size diagrams contain:
CPU Board
Power driver board
Dot Matrix board
Fliptronic II board
Power wiring diagram

Hard copies of this manual are currently unavailable.

For a free .PDF version

#16-50001-102
