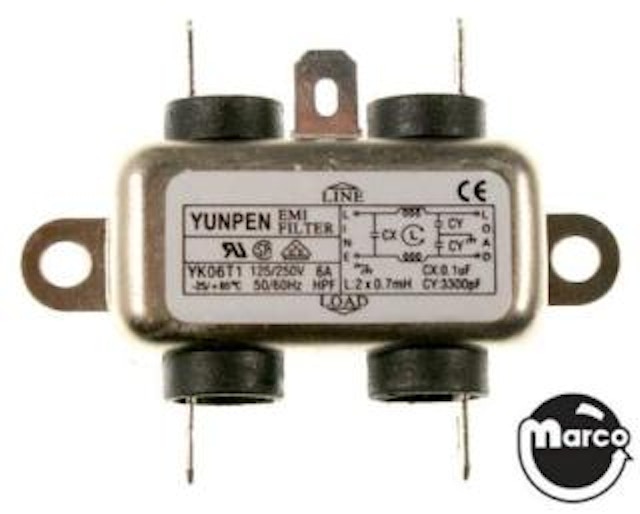

AC line filter EMI 125/250V 50/60Hz YK06T1

Name: AC line filter EMI 125/250V 50/60Hz YK06T1
SKU: 150-5000-00
Price: 12.99 USD
Availability: InStock

#150-5000-00In Stock

EMI line filter. REPLACED by 150-5016-00

$12.99

Quantity:

CALIFORNIA WARNING

This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

EMI line filter 125/250V - 6 Amp - 50/60 Hz.

Electrical specification

L= 2 x 0.7mH, Cx=0.1uF, Cy=3300pF
Working temperature : -25~+85℃
UL CSA VDE certified

Dimensions:

Main body length 44.8 x width 22.5 x height 18.0mm
Mounting holes / pitch: 4.7mm, diameter / 54.0mm
Net weight approx: 32 grams

Reference:

150-5000-00
150-5000-01
May sub 150-5016-00

Product Compatibility

Select manufacturer to view game compatibility

Substitute Parts

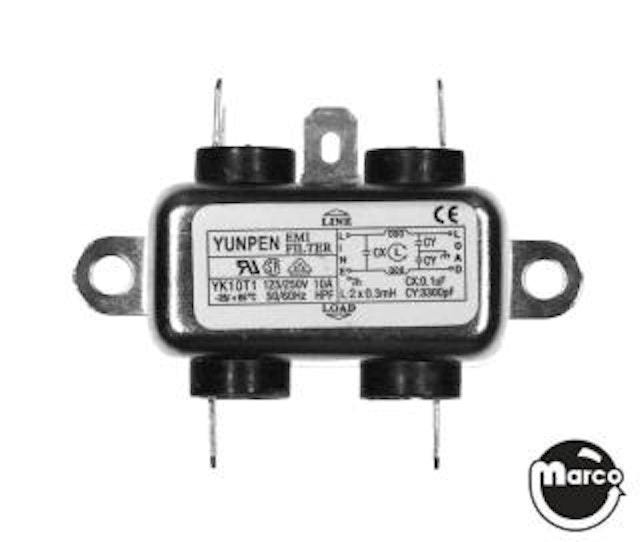

AC line filter EMI 125/250V 50/60Hz FYK10T1

#150-5016-00In Stock

EMI line filter 125/250V 6A 50/60 Hz. Replaces the 150-5000-00

$12.99

#150-5000-00
