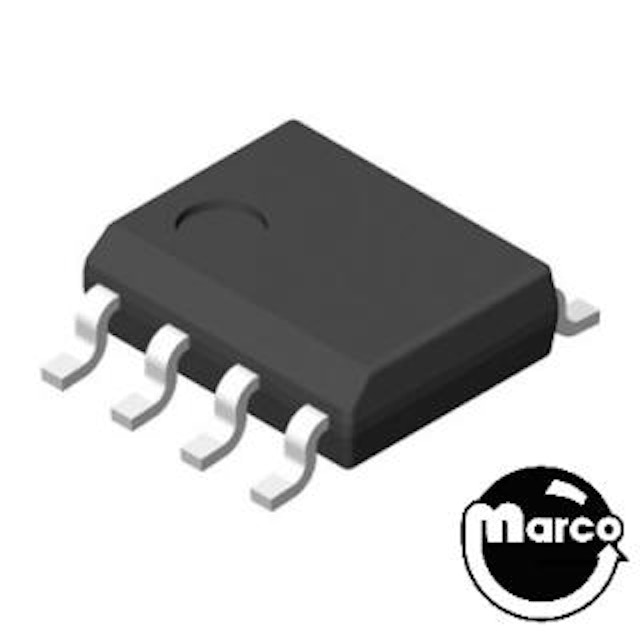

IC - SOIC-8 LTC1503-1.8 volt regulator
IC - SOIC-8 LTC1503-1.8 volt regulator
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Product Details
IC - SOIC-8 LTC1503-1.8 volt regulator
LTC® 1503-1.8/LTC1503-2 are switched capacitor step-down DC/DC converters that produce a regulated output from a 2.4V to 6V input.
The parts use switched capacitor fractional conversion to achieve high efficiency over the entire input range. No inductors are required. Internal circuitry controls the step-down conversion ratio to optimize efficiency as the input voltage and load conditions vary. Typical efficiency is 25% higher than that of a low dropout (LDO) linear regulator.
Input Voltage Range: 2.4V to 6VFixed Output Voltages: 1.8V ±4%, 2V ±4%Output Current: Up to 100mANo InductorsTypical Efficiency 25% Higher than LDOsLow Operating Current: 25µALow Shutdown Current: 5µA600kHz Switching FrequencyShutdown Disconnects Load from VINSoft-Start Limits Inrush Current at Turn-OnShort-Circuit and Overtemperature Protected
Reference:
LTC1503-1.8124-6001-00
