Star post LED kit - red
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

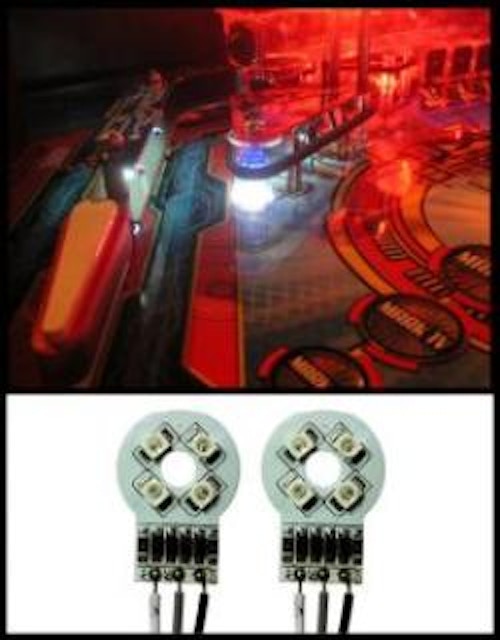

2 piece 6.3 volt AC playfield star post illumination kit
Make your playfleid lightning pop with this popular game modification. 1-1/16 inch tall plastic star posts are common to late model Stern, Sega, Bally / Williams and other brand electronic pinball machines.
This kit is designed ONLY for 6 VAC game lightning systems found in Williams, Bally, Data East, Sega, and Stern pinball machines. Will NOT operate in 5 VDC lighting systems from Jersey Jack Pinball, Spooky Pinball, and Dutch Pinball.
Fits neatly under any standard, single bumper ring 03-8319-XX plastic star post. Will not fit under double ring or concentric ring style posts.
Includes 2 LED boards, wiring, and installation instructions.
Reference:
03-8319-XX star posts
INSTALLATION INSTRUCTIONS:
WARNING: Installation requires basic knowledge of electronic circuity and requires soldering. Incorrect installation may damage
1. Turn OFF power to the machine.2. Install LED boards beneath desired star posts. They should fit loosely under the plastic post.3. Position wires close to a playfield hole and avoid ball traffic areas. Feed the wires through hole to underside of playfield.4. For GENERAL ILLUMINATION of the posts, connect the WHITE and GRAY wires to any nearby general illumination lamp. Posts will light along with all general illumination lamps.5. To add SWITCHED ILLUMINATION flashing feature, connect the GRAY wire to the minus or negative side of a nearby coil or flash lamp. Posts will flash in sync with coil or lamp activation. This connection will cause the post light to dim slightly.6. Check all connections and secure excess wire with a cable tie away from moving parts.
Select manufacturer to view game compatibility

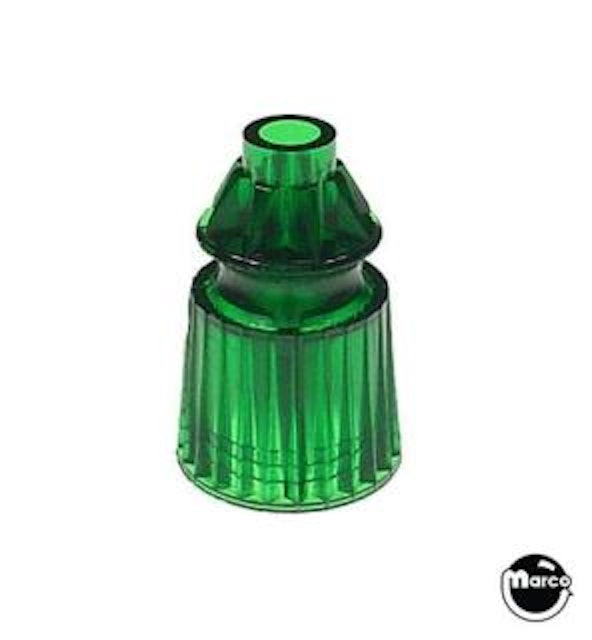

Green star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.
Violet star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.

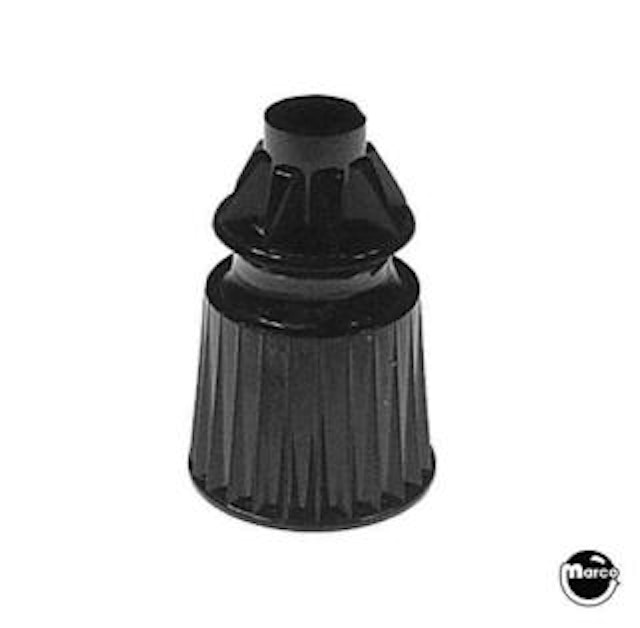

Black star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.
Post stud 6-32 x 1-15/16 inches
Playfield post fastener 6-32 top thread 1/4" long 8-32 bottom thread 3/8 inch

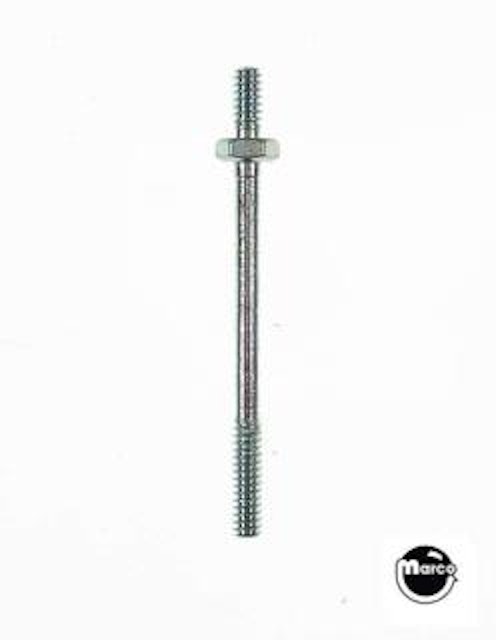

Post stud 6-32 x 2 inches
6-32 thread tee nut with 1/4 inch barrel height, 3-prong, 19/32 inch base
1/4" tall barrel and 8-32 thread with 19/32"" base or flange.
This is the most common white rubber O-ring. It is used on all plastic pos...
Premium quality black rubber O ring with a 5/16 inch inner diameter...
Yellow star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.
Red star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.
Orange star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.
Blue star 1-1/16 inch post is common to late model Stern, Sega, Bally / Williams and other brand electronic pinball machines.

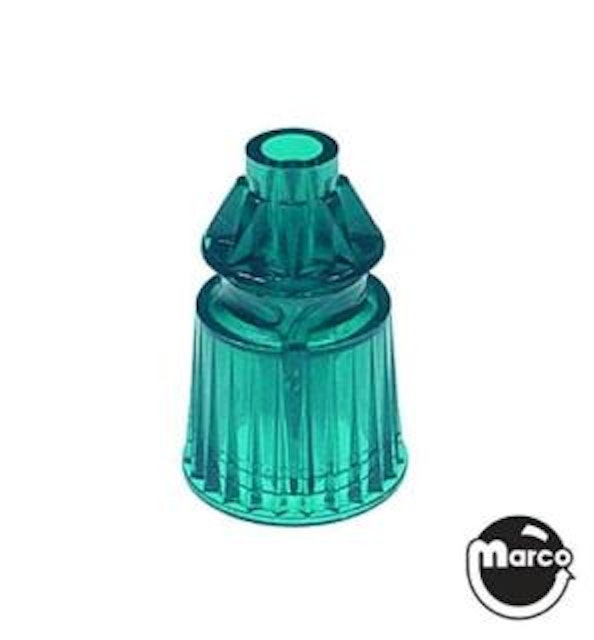

Teal star post 1-1/16 inch common to late model Bally / Williams and other brand pinball machines.
