Stepper motor and connector assembly 12 vdc Reference: 041-5105-00
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

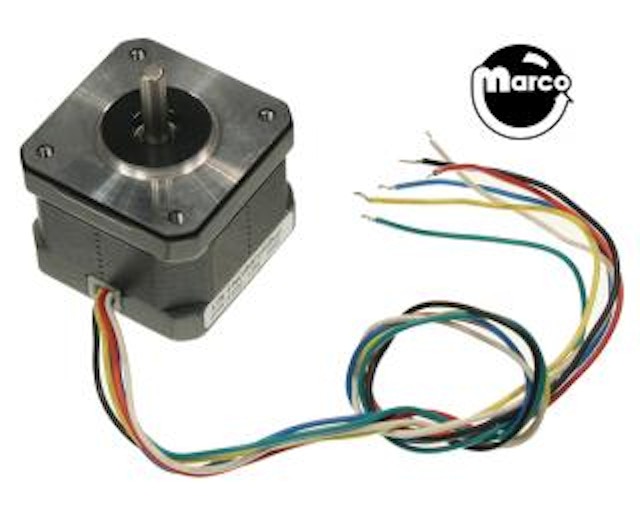

Stepper motor 12 vdc
2-phase 34mm 1.3A stepper motor with bipolar connection and 45oz-inch holding torque. This 4-lead super torque motor features NEMA 17 frame.
1.8° Step angle2.8Ω/phase resistance3.6mH inductance0.18oz-inch² inertia
Reference:

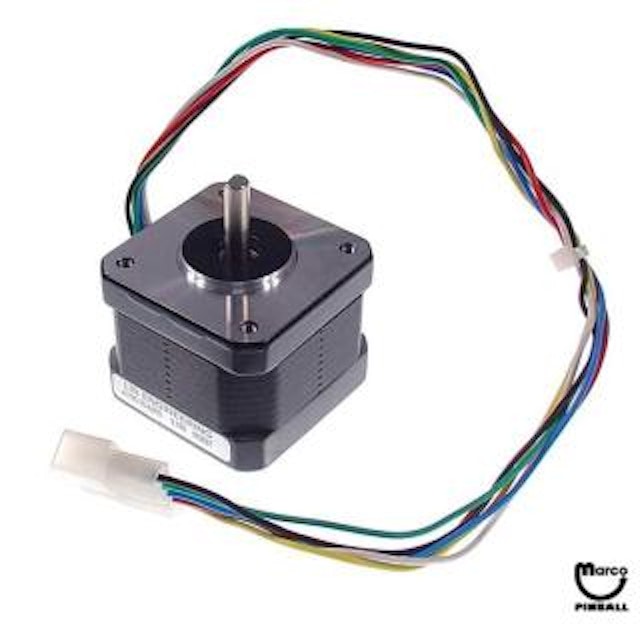

041-5105-00 motorReplaced by 511-5072-00 motor & connector4118S-70-RO
Select manufacturer to view game compatibility

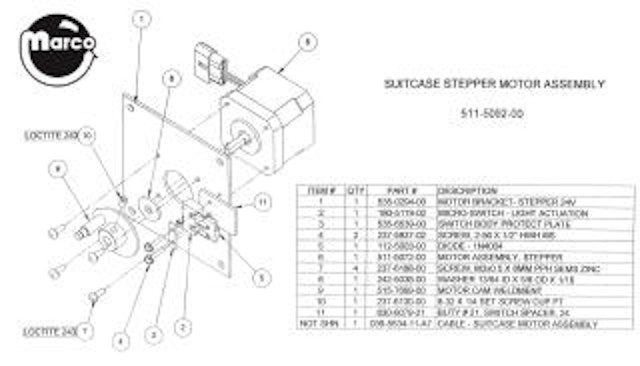

24 (Stern) Suitcase stepper motor cam

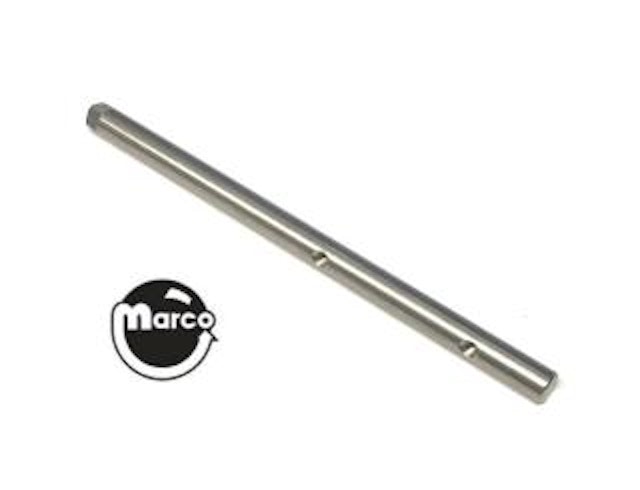

24 (Stern) Suitcase plunger assembly
24 (Stern) Suitcase ball guide
24 (Stern) Plunger shaft
24 (Stern) Suitcase shaft

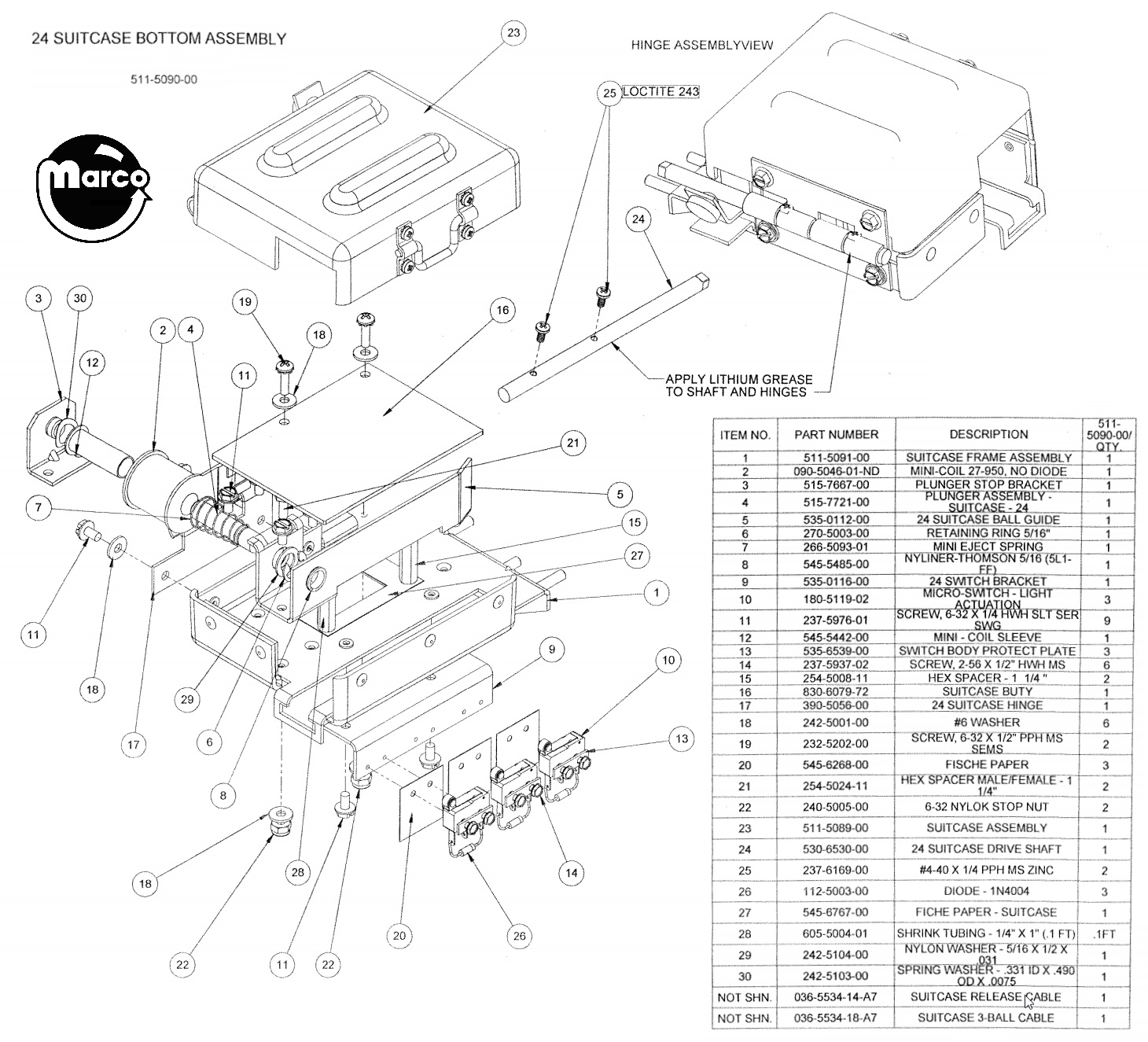

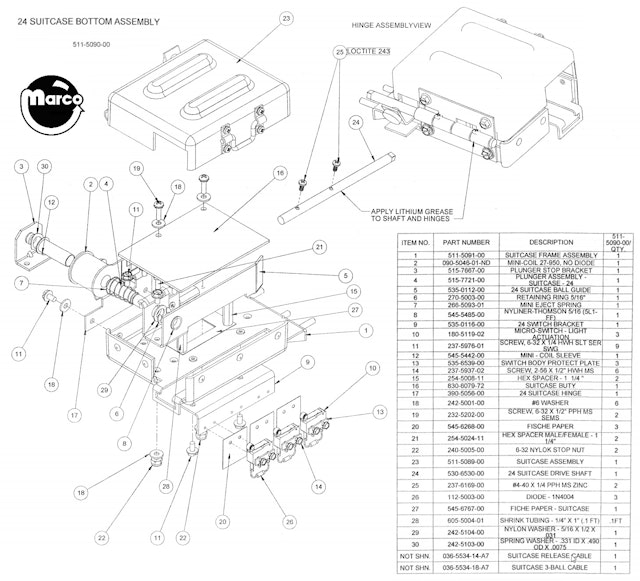

24 (Stern) Suitcase bottom assembly
24 (Stern) Suitcase frame

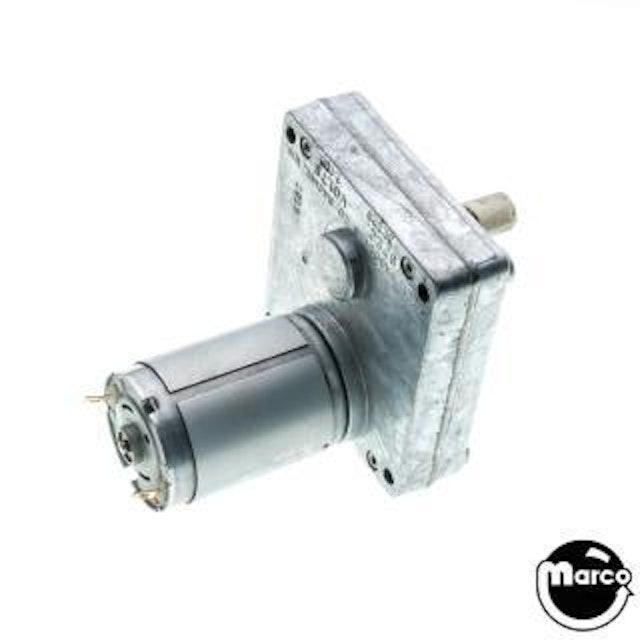

CSI (Stern) Skull motor
24 (Stern) Suitcase coil stop
24 (Stern) Suitcase switch bracket
